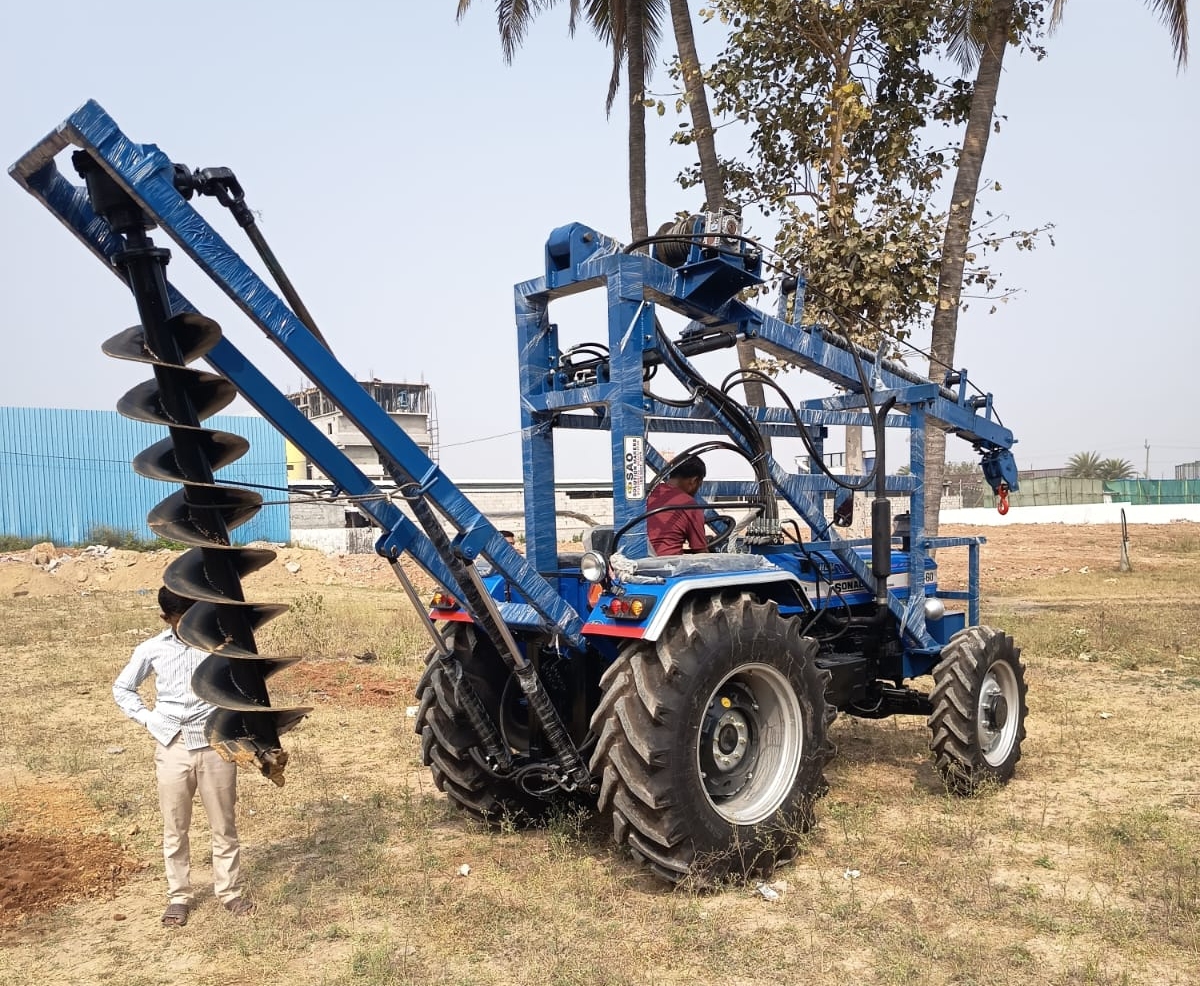

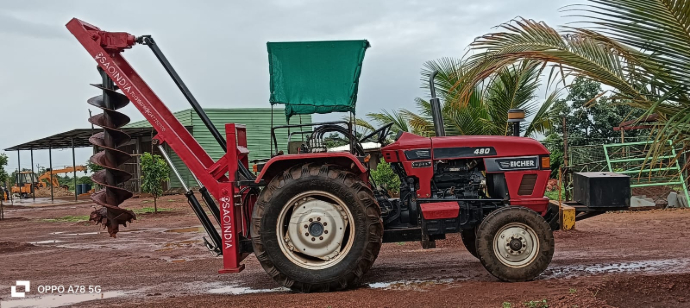

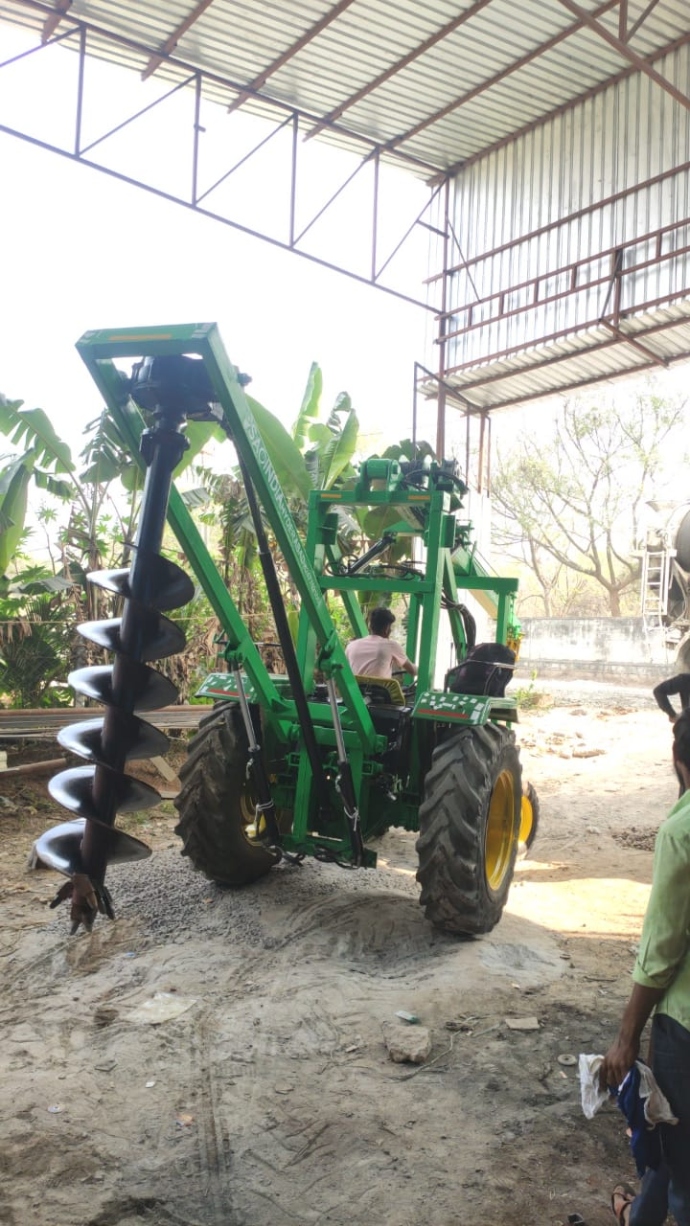

[Y Boom] Pole Erection & Post Hole Digger
Specifications: -
- Operational Height – 20 to 22 Foot
- Lifting Capacity – 1500 Kg’s
- Drill Size Dia – 1.5 Foot
- Depth – 7 To 8 Foot
- Bullets with Holders – 19 mm
- Powerful Torque
- Heavy Duty Gearbox
- Crown Pinion Wheel
- 5 Hydraulic Cylinders
- 55 HRC Hardening Pin Bushes
- R2 Hydraulic hoses
NOTE => For this attachment Hydraulic Pump Tank (Optional)
[Referred Tractor for this attachment => Any Brand tractor with 50 to 60 HP]

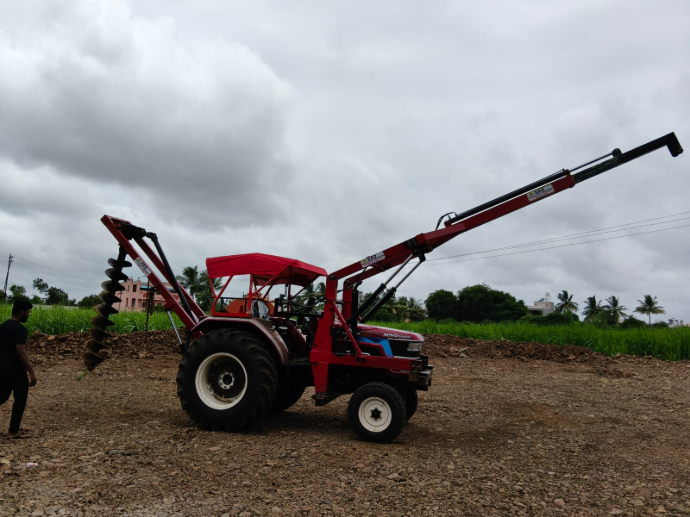

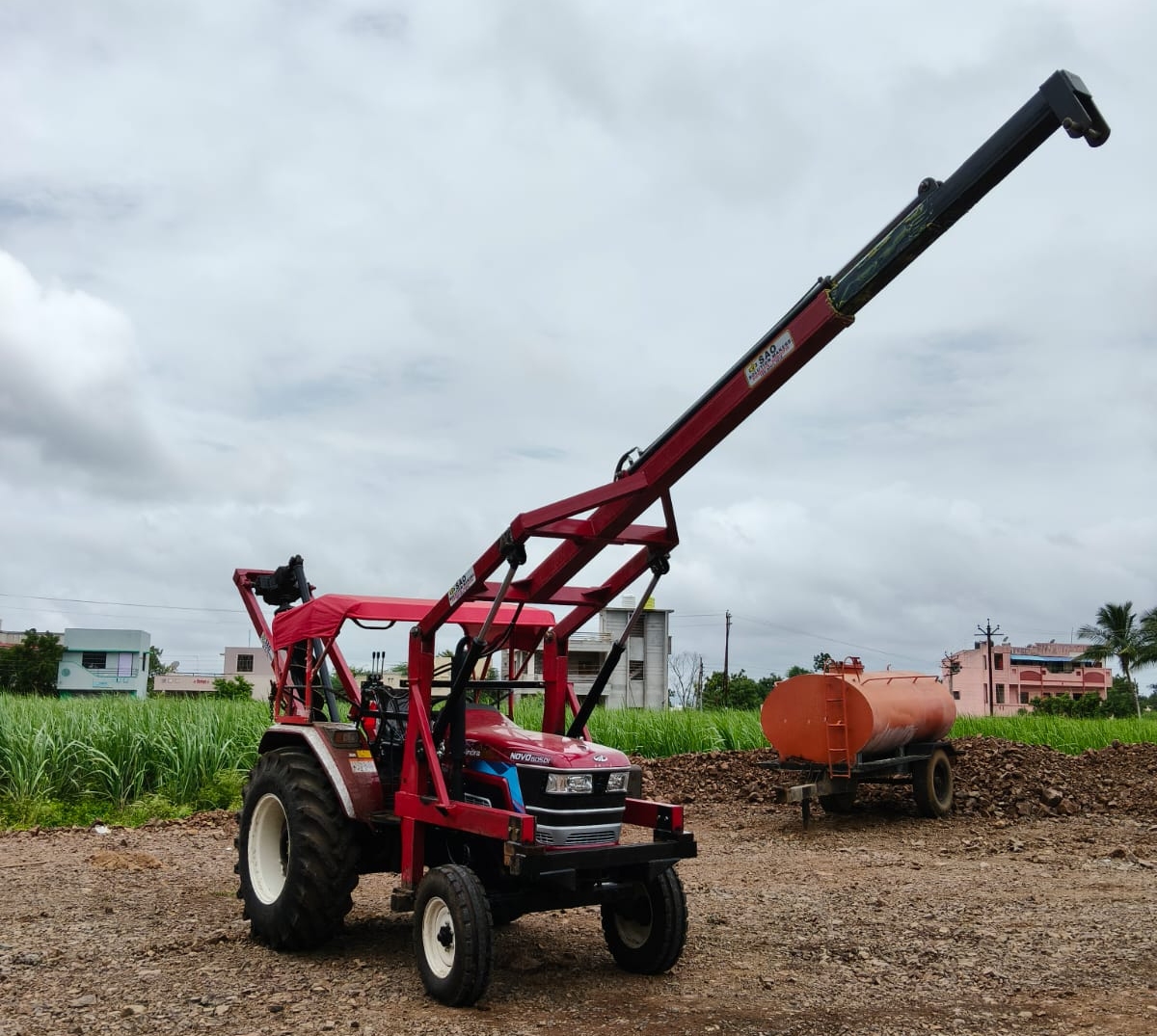

[Winch Model] Pole Erection & Post Hole Digger
Specifications: -
- Operational Height – 20 to 22 Foot
- Lifting Capacity – 1500 Kg’s
- Drill Size Dia – 1.5 Foot
- Depth – 7 To 8 Foot
- 20 Meter Rope with 12 mm
- Bullets with Holders – 19 mm
- Anchor Hook Weight – 60 Kg’s
- Powerful Torque
- Heavy Duty Gearbox
- Crown Pinion Wheel
- 5 Hydraulic Cylinders
- 55 HRC Hardening Pin Bushes
- R2 Hydraulic hoses
NOTE => For this attachment Hydraulic Pump Tank (Optional)
[Referred Tractor for this attachment => Any Brand tractor with 50 to 60 HP]

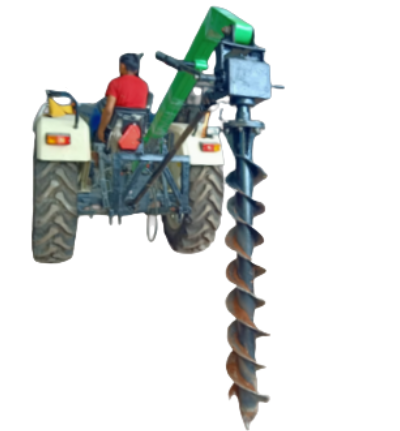

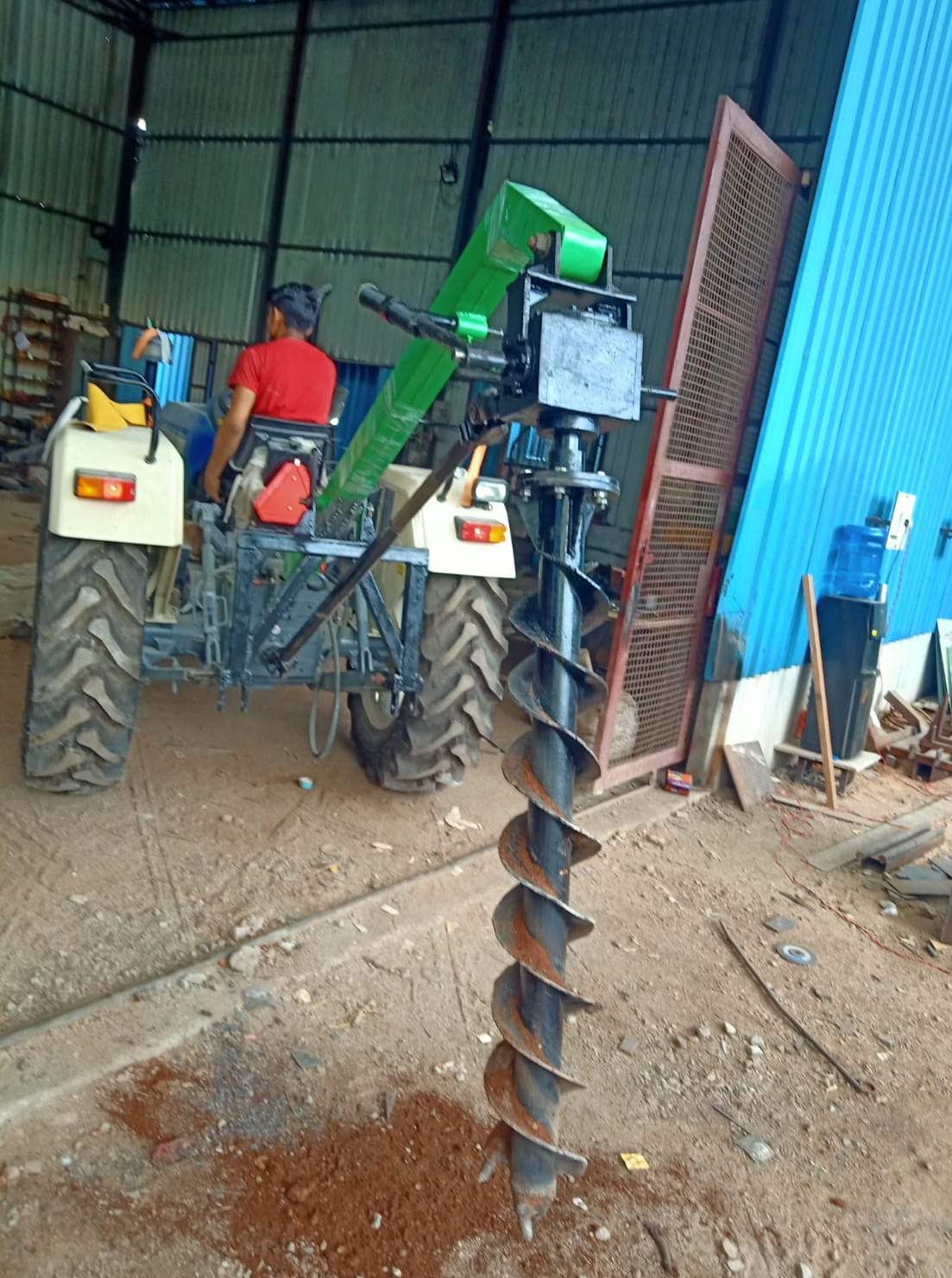

Hydraulic Post Hole Digger
Specifications: -
- Drill Size Dia – 1.5 Foot
- Depth – 7 To 8 Foot
- Bullets with Holders – 19 mm
- Powerful Torque
- Heavy Duty Gearbox
- Crown Pinion Wheel
- 2 Hydraulic Cylinders
- 55 HRC Hardening Pin Bushes
- R2 Hydraulic hoses
[Referred Tractor for this attachment => Any Brand tractor with 45 to 60 HP]
Without Hydraulic Post Hole Digger
Specifications: -
- Drill Size Dia – 1.5 Foot
- Depth – 7 To 8 Foot
- Bullets with Holders – 19 mm
- Powerful Torque
- Heavy Duty Gearbox
- Crown Pinion Wheel
- 55 HRC Hardening Pin Bushes
- R2 Hydraulic hoses
[Referred Tractor for this attachment => Any Brand tractor with 45 to 60 HP]
